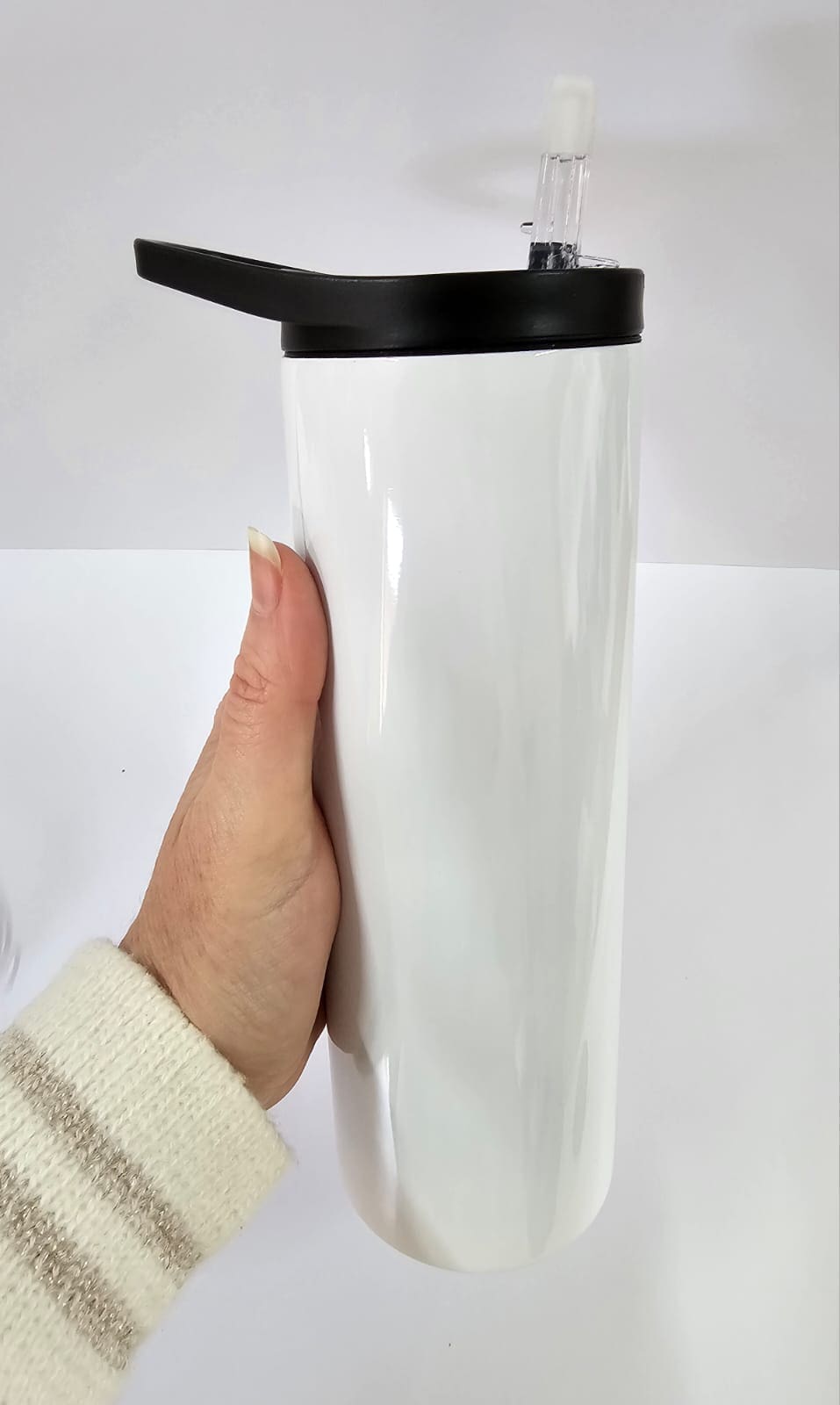

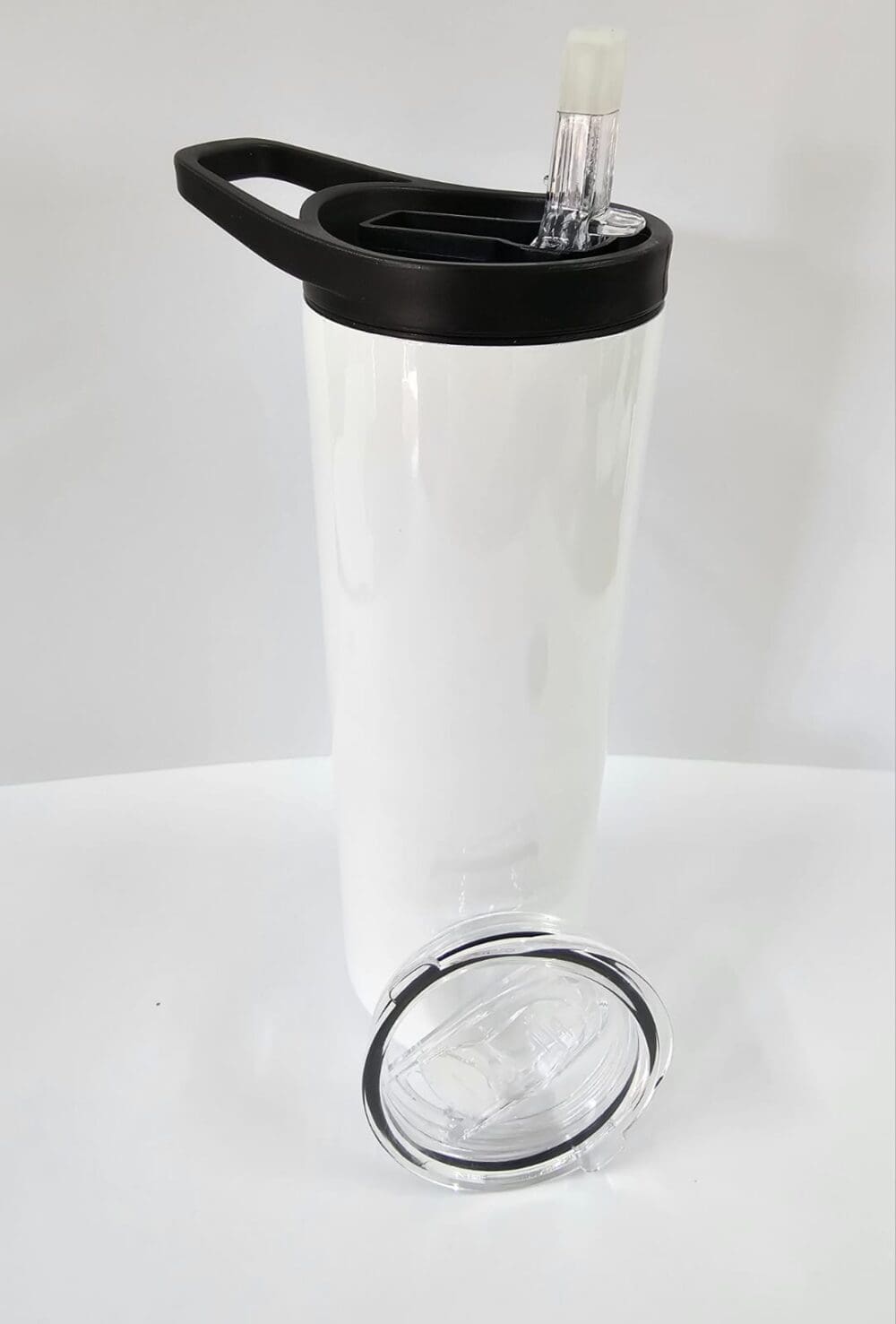

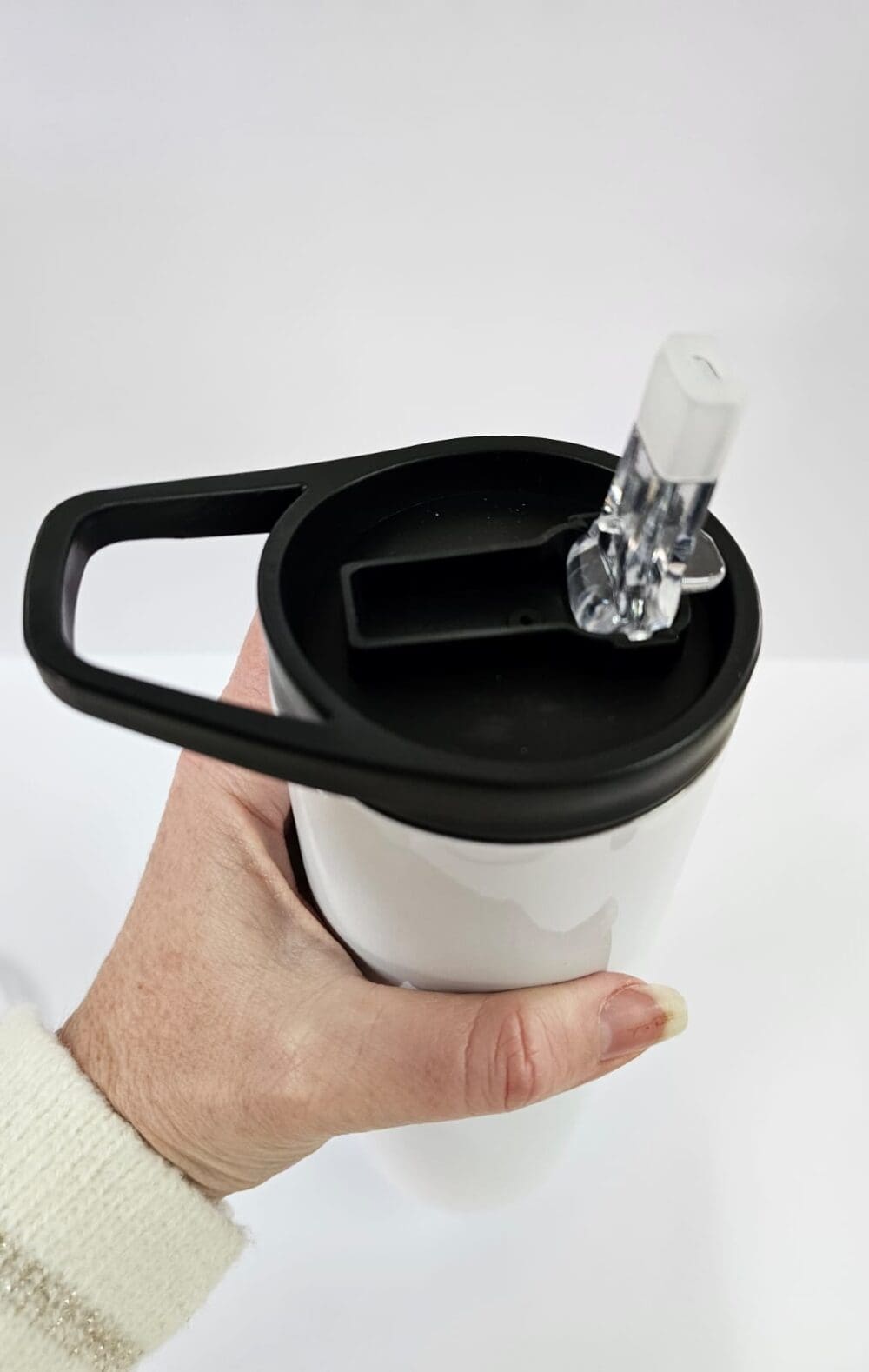

Sublimation Blanks : 20oz Straight Flip Lid Sports Tumbler With Carry Handle + Slider Screw On Lid

R165.00

Double walled and insulated steel sports bottles for sublimation. Perfect for any occasion to carry around with the handy handle + spare slider lid.

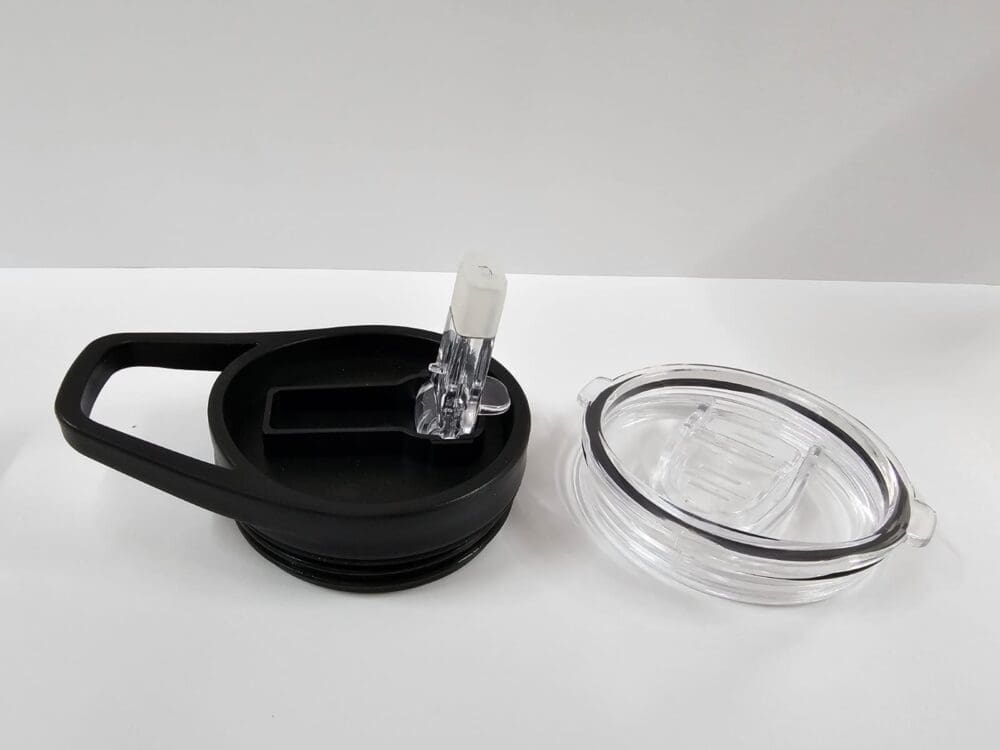

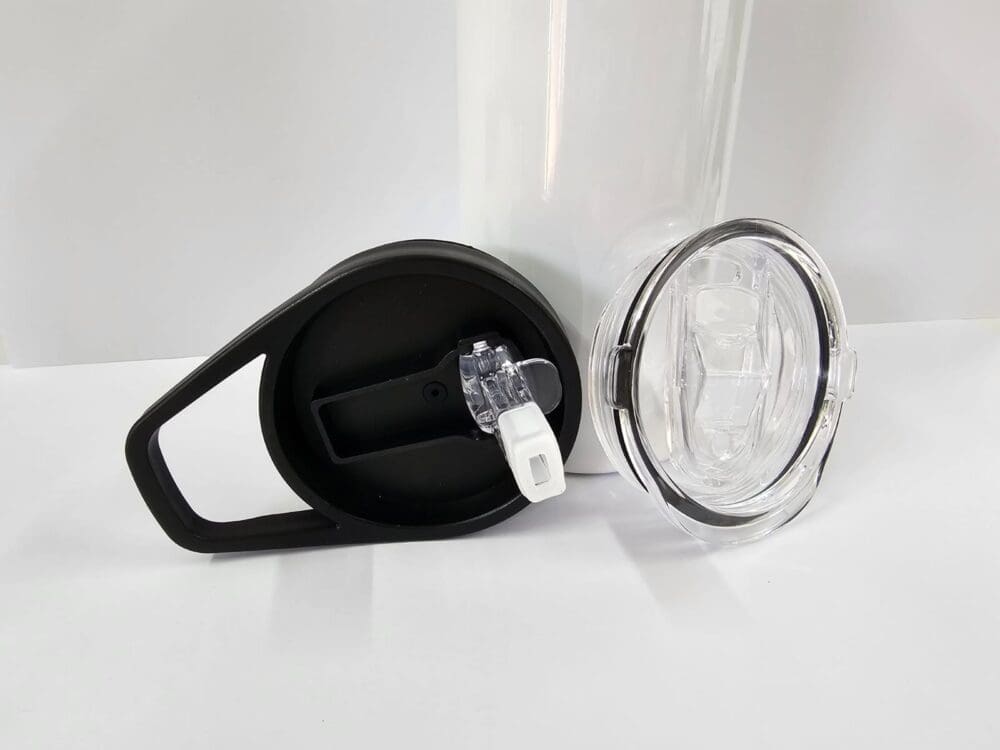

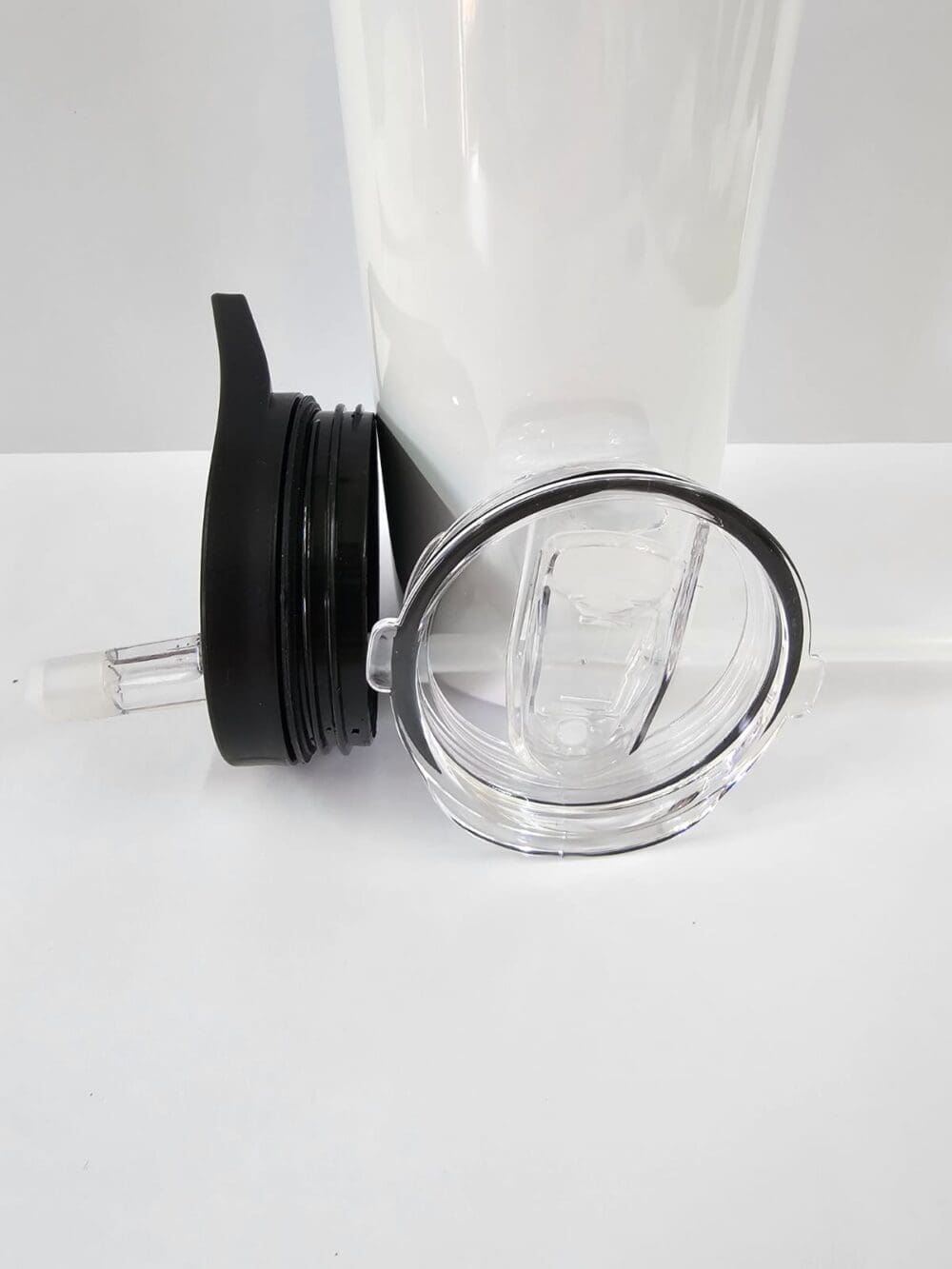

Approx. 23.5cm circumference and length of 21cm. Comes with spare slider lid and inner straw to connect to the handle lid.

If using the oven method the following shrink films are recommend:

RSMW 125-5

Shrink film can be found under Consumables, or click onto the link below to get there faster.

Sublimation Blanks : Shrink Film Sleeves



40 in stock

Note the below methods guidelines, all ovens and mug/tumbler presses are different so get to know your oven/press and establish what is best temp and time and pressure (if in a press).

Note with mug presses they are shorter so you may need to rotate according to your design requirements.

TUMBLER OR MUG PRESS

190deg for 90sec then turn for 30sec

Or use the rotating method

185deg 50sec rotate to 9H00 o clock position
then again 50sec rotate to 15H00 o clock position
then 25sec rotate to 6H00 o clock position
then 25sec rotate to 12H00 o clock position

OVEN METHOD

This method is in my oven which is a thermo fan. If you have any other oven then you will need to test what works for you, its like baking a cake. If you have a top and bottom grill it will be hotter so test with a tumbler first to see how it goes. If you bake to long the print goes dull/light like it fades.

  1. Preheat oven on 180 for 15min
  2. Tray must be in the middle of oven or just below
  3. Put silicone paper or baking paper on try
  4. Secure print tightly to tumbler
  5. The shrink film. Slit it down the side then secure it tight to the print, cut it down to size if too long and double tape the join
  6. Get the heat gun and shrink it to the tumbler, tight, no creases or bubbles, smooth. Don’t put the nozzle to close otherwise you can melt the film, about 10 to 15cm away and wave it around like a hair dryer.
  7. Upside down in the oven for 6min on 180
  8. Then take out and remove everything immediately

PS use gloves when taking it out the oven!

Point 5 is the easiest rather than putting it over as it is a mission to remove, here you just pull off the tape and it unravels, what works for me. Make sure where you re-tape the shrink film to do x2 rows of 2cm heat tape as it can pull apart in the oven.

Also please do not let shrink film on to raw tumbler, it can now and then surprise you and stick to the tumbler and then you can’t get it off! Use silicone paper to protect your tumbler but I always use the full paper even if I don’t do a full print that is if you are using a straight tumbler then no silicone paper required, it is only on the old shaped ones.

SIZES

18OZ, 32OZ
